MR 800.4

LIFTING CAPACITY:

up to 800kg

OVERALL DIMENSIONS:

2140 x 1100 x 1153 mm

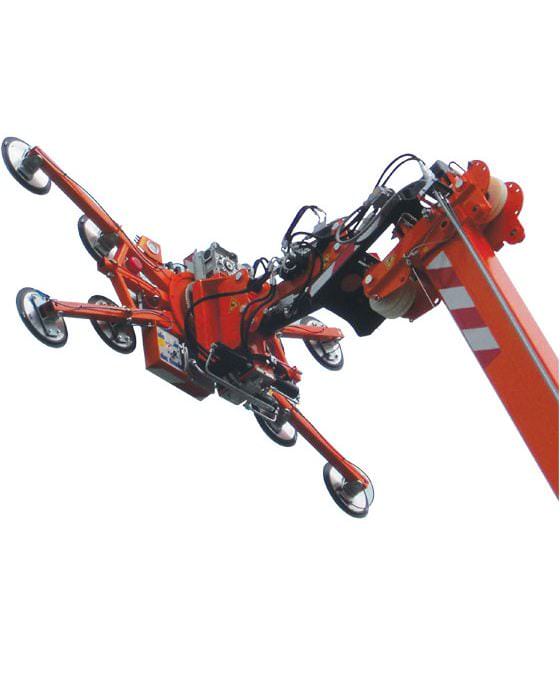

Manipulators for glass panes are specific tools to Jekko minicranes. They need to be installed in combination with the hydraulic activation. They are used for precise handling and installation of glass panes, and are faster and more efficient in comparison with a single suction cup since one operator is enough to pick up and lift the pane to the required height, orient and place it in the position where it will be fastened to the building structure. Manipulators can lift panes up to 600 kg. The operator controls the manipulator via the machine radio remote control: extremely precise movements in the 4 directions are possible as well as inclination and rotation. Manipulators for glass are available for all models except for the SPB209. Suction cups can be used for all non-porous materials according to the limits provided for by the local regulations in force.
